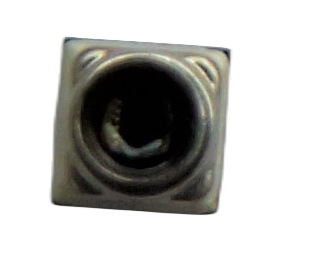

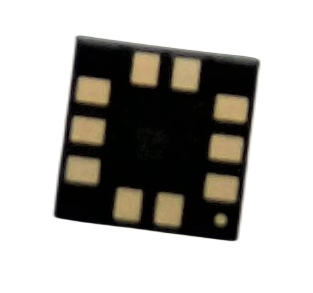

Waterproof Pressure Sensor
Manufacturer: Goertek(歌尔)
Manufacturer Part#：SPL16-005/SPL16-001
Description： Digital pressure sensor
Package: 005：2.8*2.8*1.95mm
001：2.7*2.7*1.70mm
MPQ： 3000/3500pcs
Lead Time： 2 weeks
Price： $2.28
Instead： ST:LPS27HHW...

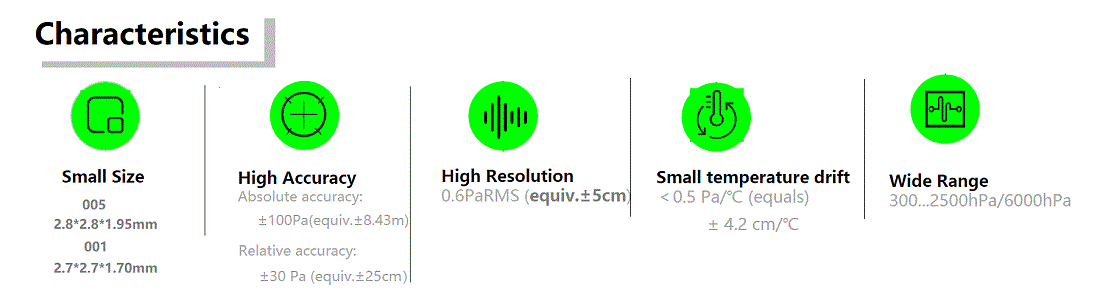

Specification Details
Datasheet for Download：SPL16-005_datasheet
Datasheet for Download：SPL16-001_datasheet_V5.0

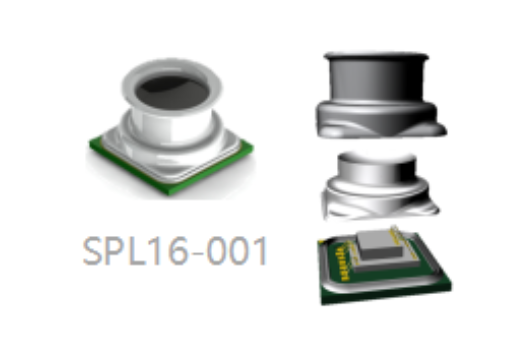

The SPL16-001 is a small, compatible and high-accuracy sensor of next-generation from Goertek in China.
The SPL16-001 is a Digital Barometric Air Pressure Sensor with both pressure and temperature measurement capability.
Its water resistance rating of 100 meters.The small package is compatible with most popular products in the market,
e.g., ST LPS27HHW...It provides engineers with more choices to ensure production stability.

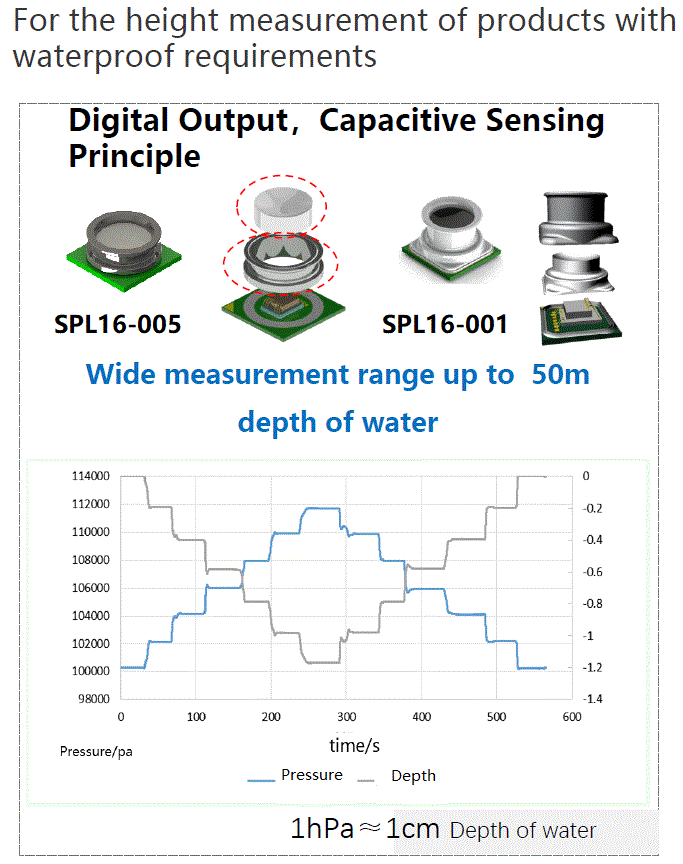

SPL16-005 has -60 meters underwater depth measurement capability（ new product）

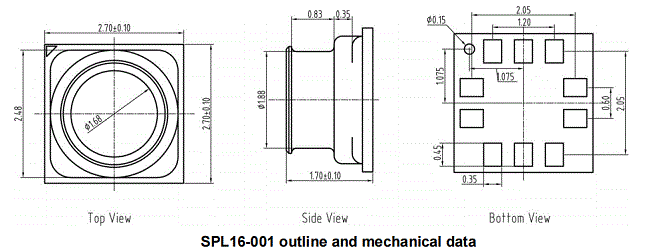

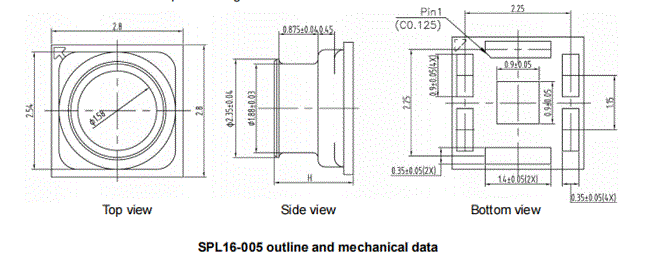

Outline Dimensions
|
Please send RFQ , we will respond immediately. |
||
